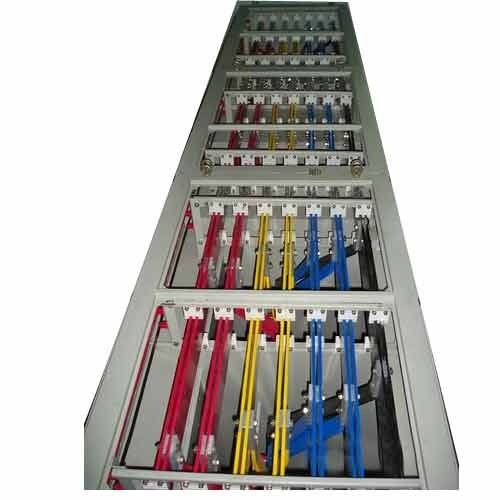

A bus duct, short for busbar duct, is an essential component in electrical power distribution systems. It’s essentially a metal enclosure that contains a set of conductive bars or busbars, usually made of copper or aluminum. These busbars serve as a means of efficiently and safely transmitting electrical power from one point to another within a facility, such as a factory, commercial building, or data center.
Bus ducts operate by efficiently transmitting electrical power from a central source to various points within a facility. These metal enclosures contain busbars, which are conductive bars made of copper or aluminum. Electrical power enters the bus duct at one end and flows through the busbars. The busbars carry the power without significant resistance and distribute it to different areas or equipment within the facility. Bus ducts are designed for high conductivity, making them energy-efficient. They also provide electrical insulation and protection, ensuring safe power distribution. In some cases, cooling systems are integrated to dissipate heat generated during power transmission. This efficient and flexible design of bus ducts contributes to their crucial role in modern electrical distribution systems.
A bus duct, often referred to as a busbar duct, is a critical component in electrical power distribution systems. It is essentially a metal enclosure or housing that contains a set of conductive bars known as busbars. These busbars are typically made of copper or aluminum and serve as a means of efficiently and safely transmitting electrical power from one point to another within a facility. Bus ducts are widely used in various industrial, commercial, and institutional settings to distribute electrical power from a primary power source to various distribution points throughout the facility. They provide a reliable and cost-effective method for electrical power transmission, with flexibility in design to meet specific power distribution needs and safety features to protect against electrical faults and physical damage. Bus ducts can be installed both indoors and outdoors, and they play a crucial role in ensuring the efficient operation of electrical systems in buildings, factories, data centers, and other applications.
Bus ducts are subject to various standards and guidelines to ensure their safety, performance, and compatibility within electrical power distribution systems. These standards can vary by region and application, but some of the commonly applicable standards and specifications for bus ducts include:
IEC 61439: Part of the International Electrotechnical Commission (IEC) series, IEC 61439 specifies requirements for low-voltage switchgear and controlgear assemblies. This standard covers the design, testing, and performance of bus duct systems.
NEMA BU 1.1: This standard, issued by the National Electrical Manufacturers Association (NEMA) in the United States, provides guidelines for the design, testing, and performance of busway systems, including bus ducts.
UL 857: UL 857, issued by Underwriters Laboratories (UL), addresses the safety and performance requirements for busway systems, ensuring that they are suitable for specific applications.
NEC (National Electrical Code): In the United States, bus ducts must comply with the requirements outlined in the NEC, which includes safety standards and guidelines for electrical systems and equipment.
EN 60439 Series: The European Norm (EN) standards, corresponding to IEC 60439, cover low-voltage switchgear and controlgear assemblies and are applicable to bus ducts used in European regions.
Manufacturer's Specifications: Manufacturers often provide their own specifications and guidelines for the design and manufacturing of bus ducts, which should align with relevant industry standards.
Adhering to these standards is essential to ensure that bus ducts are safe, reliable, and suitable for their intended applications, whether in industrial settings, commercial buildings, or other contexts where efficient and safe electrical power distribution is required.
Bus ducts are designed with various ratings to suit specific applications and electrical load requirements. These ratings encompass different specifications and capacities to ensure compatibility with the systems they serve. Common ratings for bus ducts include:
Voltage Rating: Bus ducts are typically designed for specific voltage levels, such as 415V for three-phase systems or 690V for higher voltage applications. The voltage rating must match the electrical system's voltage to ensure safe and efficient power transmission.
Current Rating: The current rating indicates the maximum current-carrying capacity of the bus duct. It can vary widely, from a few hundred amperes to several thousand amperes or more, depending on the size and load requirements of the electrical system.
Frequency Rating: Bus ducts are typically designed for a standard frequency of 50 Hz or 60 Hz, depending on the region's electrical standards.
Number of Conductors: The bus duct's rating may specify the number of conductors or busbars it can accommodate, which determines its capacity to distribute power to various circuits and equipment.
Environmental Conditions: Some bus ducts are rated for specific environmental conditions, such as indoor, outdoor, hazardous, or corrosive environments. These ratings ensure that the bus duct can operate safely in its designated settings.
Protection Features: Bus ducts may have protection features such as built-in circuit breakers, fuses, or busway plugs designed to protect against electrical faults and overloads.
Selecting the appropriate bus duct with the right ratings is crucial to ensure the efficient and reliable distribution of electrical power. The specific ratings required depend on factors such as the application, electrical load, environmental conditions, and safety considerations. Consulting with electrical engineers and experts is recommended to determine the most suitable bus duct for a particular setup.
The protection level of a bus duct, particularly with regard to its enclosure, is essential to safeguard the electrical components within from environmental factors and ensure safe and reliable operation. Protection levels are often specified using NEMA (National Electrical Manufacturers Association) or IP (Ingress Protection) ratings, each of which provides information about the bus duct's resistance to various environmental conditions.
Common protection levels for bus ducts include:
NEMA Ratings: NEMA ratings are commonly used in the United States and indicate the level of protection against environmental factors such as dust, moisture, and corrosion. Common NEMA ratings include NEMA 1 (indoor, general purpose), NEMA 3 (outdoor, weather-resistant), NEMA 4 (outdoor, water-resistant), and NEMA 4X (outdoor, corrosion-resistant), among others.
IP Ratings: IP ratings are more commonly used internationally and provide information about the bus duct's resistance to solid objects and moisture. An IP rating consists of two digits: the first digit indicates protection against solids (from 0 to 6), and the second digit indicates protection against moisture (from 0 to 8). For example, an IP65 rating signifies protection against dust (6) and water jets (5).
The choice of protection level for a bus duct depends on factors like the installation environment, the presence of dust, moisture, or corrosive agents, and the bus duct's intended use. For instance, a bus duct located in a clean indoor environment may have a lower protection level (e.g., NEMA 1 or IP20), while bus ducts in outdoor or industrial settings may require higher protection levels to ensure their longevity and reliability.
Selecting the appropriate protection level is crucial to avoid damage to the bus duct's components and to guarantee the safe and efficient distribution of electrical power.
